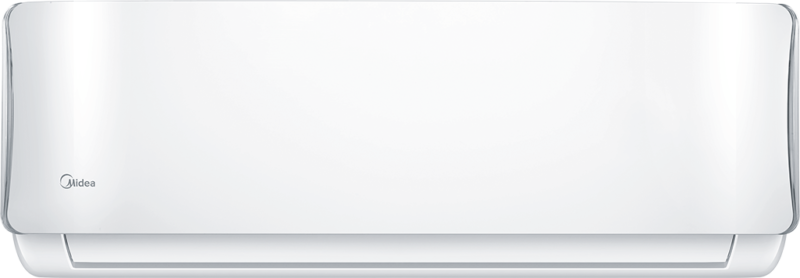

Midea Apollo Split Air Conditioner 3.5 kW
Wall Mounted Split System Air Conditioner
Create pure comfort with class leading air conditioning technology for rooms 16-23m²*. Now you have the choice of next generation, eco friendly and energy efficient R32 refrigerant for your split system air conditioner.
Welcome home to pure comfort
Try the new Apollo wall mounted split system with energy efficient R32 refrigerant for pure comfort, and energy savings with your air conditioning.
Available Capacities
Capacity: 3.5kW
Suitable for Room Size: 16-23m²*
Model Number: MFAB35 (3.5kW)
Comfortable & Eco Friendly
Harness superior cooling power with minimal energy use, all while diminishing your environmental impact with our green refrigerant.
Comfort in More Ways than One

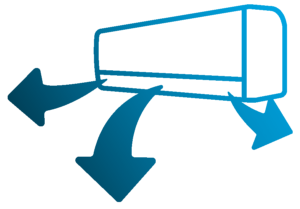

With 3D Airflow, the Xtreme’s directional air outlet moves automatically horizontally and vertically, directing air where you need it.
Air Conditioned in a Flash
Flash Cooling with Quattro™ technology delivery changes the room temperature faster.
A More intelligent Use of Energy
Smoother, and more efficient management of the compressor.
R32 Refrigerant
WiFi Control (Optional)
Heating & Cooling
High Density Filter
Demand Response Enabled Device
Refrigerant Leakage Detection
Turbo Mode
Quiet Mode
R32 Refrigerant
WiFi Control (Optional)
Heating & Cooling
High Density Filter
Demand Response Enabled Device
Refrigerant Leakage Detection
Turbo Mode
Quiet Mode
Class Leading Features
Smart Sleep Curve
Set appropriate temperature curves for you and your family. There are default modes for selection, or you can customise your own.
Automatic & Safe
Fully Automatic Control to ensure your comfort, and your safety with a Fireproof Electronic Control Box made with using ABS material and a 5VA flame retardant rating.
Cleaner Air
Breathe easier with an Apollo series split system. Midea’s High Density Filter technology is capable of cleaning up to 80% more dust and pollen from the air.
The inside unit is mounted on a wall in the room you need it, and draws in air where it cools or heats it depending on your preference and sends it back out for your comfort.
Get Comfortable, Faster
The Apollo series implements a powerful compressor and unique air inlet design to provide greater comfort year round.
Pure Convenience with Comfort you want

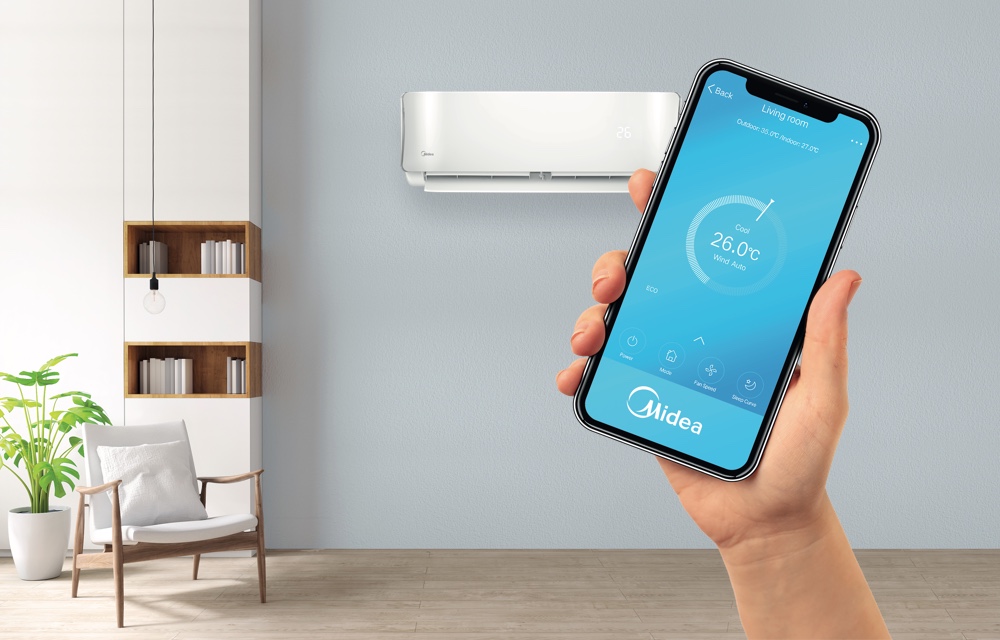

Wireless Control from Anywhere with the Midea App
Apollo offers multiple control options to suit your lifestyle. In addition to countdown timers and intuitive air direction features, opt for an Apollo WiFi adaptor to control your system remotely using the Midea mobile app.

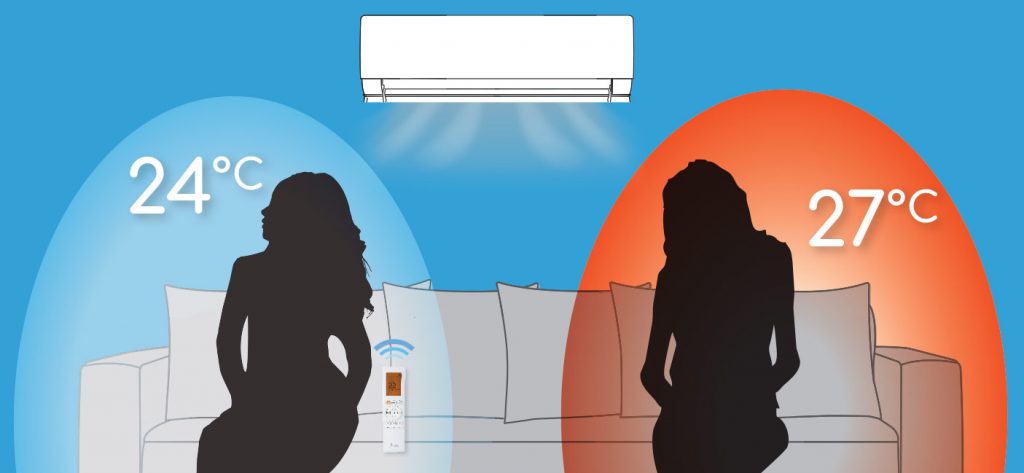

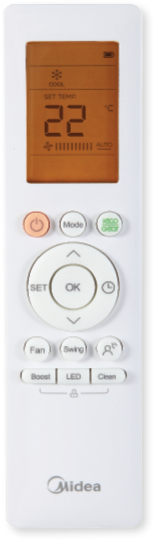

Follow Me
Keep the remote control close to you and press the ‘Follow Me’ button, and the air conditioner will auto-calculate the temperature of the air around you and ensure that it is cool enough.

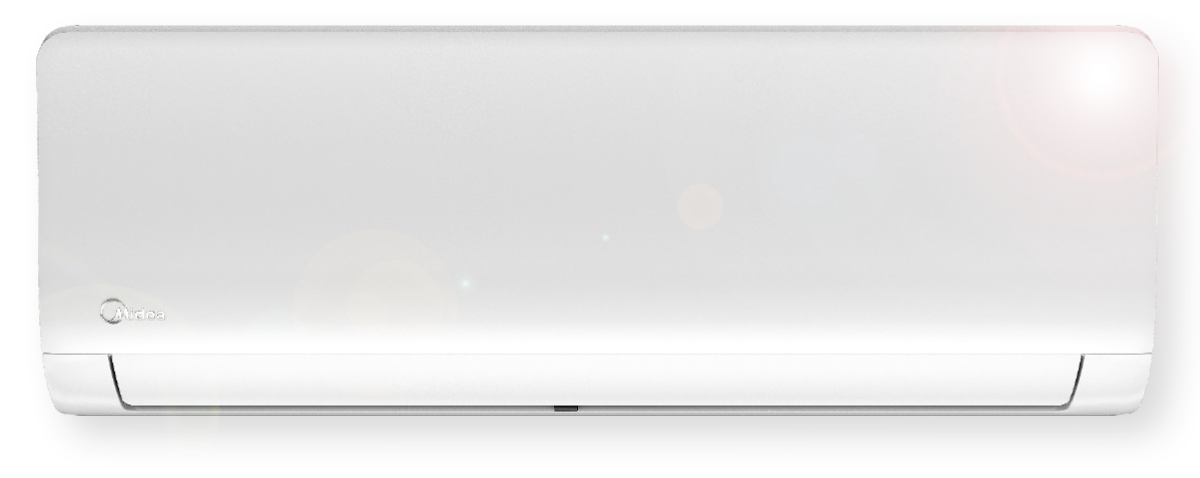

Fresh Design
Apollo features an unobtrusive fascia design to become part of your home or office. A discreet display that glows when active means yours looks clean and tidy when mounted on your wall.
Louver Position Memory
If you have a favourite static air direction, Apollo remembers this and opens the louver to the same position when you turn it on, so you don’t need to readjust it.
Auto Swing
Leave the best way to direct air flow and make a room comfortable to Apollo with the Auto Swing function distributing conditioned air to the maximum area by moving the horizontal louver automatically.
Timer Control
Set an easy countdown to an On/Off time, or use the Combined Timer to start and stop your air conditioning at different times of the day throughout the week depending on what you want.

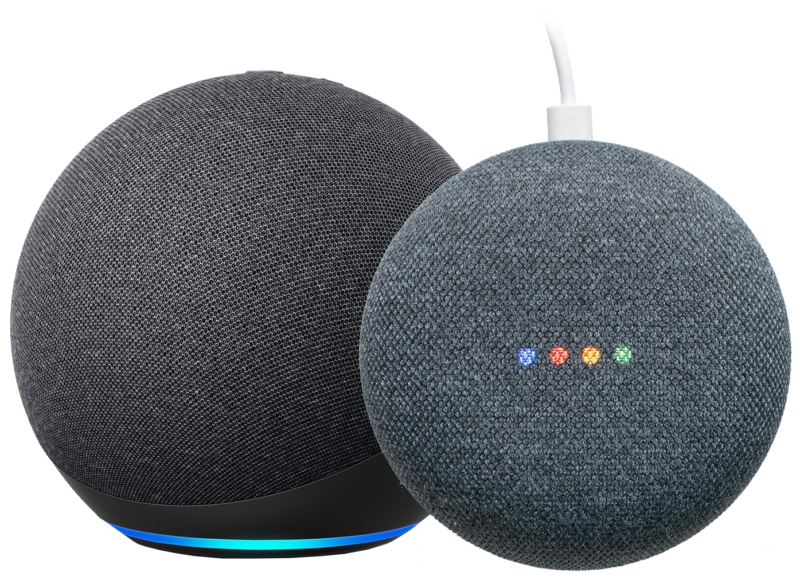

Voice Control through Google & Amazon
Just tell the air conditioning to chill this summer! AirTouch gives you the ability to control your home climate with your choice of the Google Assistant or Amazon Alexa.
Save Energy,
Save the Environment
1 Watt Standby
Avoid energy wastage when your Midea split system is on standby.
Smart Sleep Curve
MEPS Compliant All Midea Apollo air conditioners are MEPS (Minimum Energy Performance Standards) Compliant.
Low Environmental Impact with R32 Refrigerant
The refrigerant is a vital part of your air conditioner. With Midea, you have the choice for R32, which requires less energy to run your system, reducing your carbon footprint and helping save money on the power bill.
As your system won’t have to work as hard to heat or cool the air, it will potentially have a longer service life. With less toxicity than other options it is better for humans and the planet in general. Plus, it is easily accessed by air conditioning professionals if ever needed.

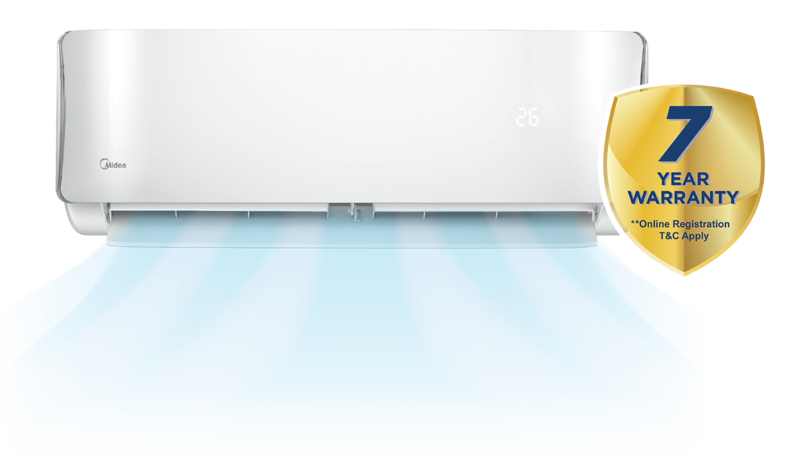

Pure confidence with a 7 year warranty**
Powerful & Fast
Make your home comfortable faster. The Apollo series uses an efficient compressor and smart design to allow for effective strong flow of conditioned air for immediate comfort.
Clean, Filtered Air
Breathe clean, healthy air. Capable of cleaning up to 80% more dust and pollen from the air, the Apollo’s High Density Filter technology brings you clean and refreshing air.
Smart
Connect your Apollo to WiFi with the optional adapter and turn on the air conditioning from anywhere with the Midea App or with your voice using smart integrations from Google Home or Amazon Alexa.
ECO Friendly
Next generation of eco friendly, energy efficient heating and cooling. Use less energy to run your air conditioner and with the more eco friendly, and safer R32 refrigerant gas in your compatible Apollo.
Create pure comfort at home with class-leading air conditioning technology.
Source: Euromonitor International (Shanghai) Limited; Consumer Appliances 22ed, retail volume sales in unit, 2021 data
Specifications
14.0kW Ducted System
| Series | Apollo |
|---|---|
| Indoor Unit | MFAB35NB |
| Outdoor Unit | MFAB35WB |
| Application Area | 16 -23 (m2) |
| Rated Cooling Capacity | 3.5 (kW) |
| Rated Heating Capacity | 4.0 (kW) |
| Energy Stars Cooling | 4 |
| Energy Stars Heating | 4 |
| Capacity Range Cooling | 1.00-3.50 |
| Capacity Range Heating | 1.4-4.00 |
| Indoor Airflow (Turbo/Hight/Med/Low) | 194 / 153 / 133 / 97 |
| Front Panel Colour | White |
| Power Supply | 1 Phase, 220-240v, 50Hz |
| EER Cool | 4.28 |
| AEER Cool | 4.25 |
| Max. Running Current (A) | 10.5 |
| Size L x W x D (Indoor) | 802 x 189 x 297 (mm) |
| Size L x W x D (Outdoor) | 765 x 303 x 555 (mm) |
| Weight (Indoor) | 8.6 (kg) |
| Weight (Outdoor) | 28.1 (kg) |
| Refrigerant | R32 |
| Pre Charged (m) | 12 |
| Refrigerant Piping Liquid Side/Gas Side (in”) | 1/4″ / 3/8″ |
| Max. Refrigerant pipe Length (m) | 25 |
| Max. Different in Refrigerant Pipe Level (m) | 10 |
| Outdoor Operating Range (Cooling) | 0 to 50°C |
| Indoor Sound Level (dbA) (Fan Turbo/High/Medium/Low/Quiet) | 37 / 33 / 25.5 /32 |
| Outdoor Sound Level (dbA) | 55 |
*Capacity and area information are general guides only and may vary from different install conditions. You should obtain professional advice from qualified air conditioning installers for suitable capacity recommendations.
**All aspects of warranty including parts, labour and other support is wholly provided by Midea Australia. Conditions apply.
